Product Details:
Payment & Shipping Terms:
|
Name: | Aluminum Laser Welding Machine | Application: | Metal Words Copper Stainless Steel |
---|---|---|---|
Pulse: | 120J | Power: | 400W |
Warranty: | 12 Months | Obervation: | CCD Monitor |
Cooling: | Water Cooling System | Color: | Grey |
High Light: | cnc laser welding machine,fiber optic welding machine |

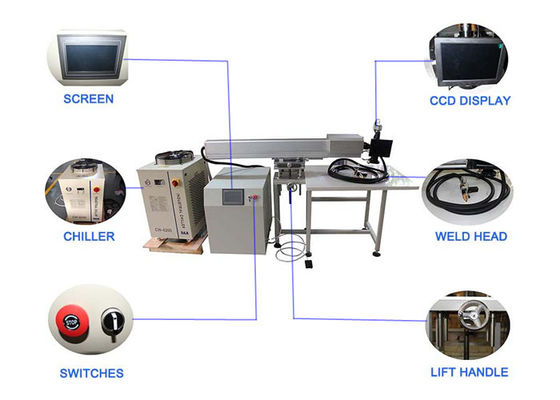

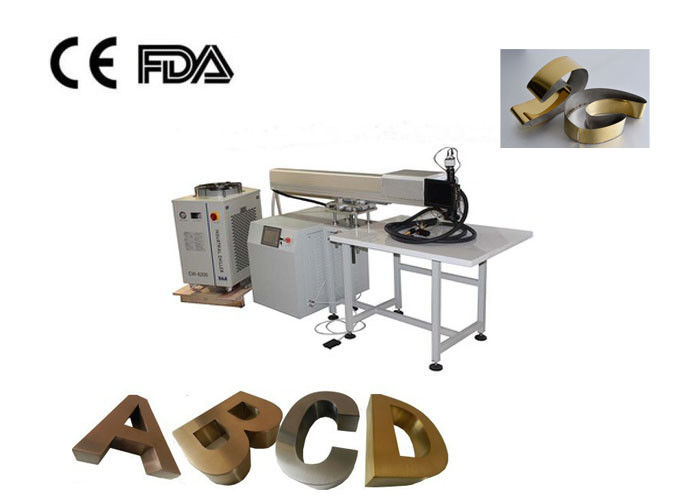

Arc Laser Weld Aluminum to Steel Electrode for Stainless Steel Welding Machine
Description about Arc Laser Weld Aluminum to Steel Electrode Laser Welding Machine
Many stainless steel is used in the production of argon arc welding machine and other common welding machine, these can meet the needs of production, but in the process of welding welding defects such as: bite edge, lack of penetration, dense hole and crack not only reduce the robustness of joint, but also will become a source of corrosion of crevice corrosion.
In the welding process, not only the welder must have a certain level of technology, but also the welding skills and welding flux cost requirements are too large, will increase the cost of production.
Moreover, after welding, the working steps of machining should be carried out, and the time efficiency is very slow. Because of the existence of these defects, the laser welding machine was born.
Parameter about Arc Laser Weld Aluminum to Steel Electrode Laser Welding Machine
Power | 400W |
Power Supply | 220V+10%/50Hz |
Pulse Width | 0.5-0.25MS |
Pulse Frequency | 0.1-100Hz |
Laser Wavelength | 1064nm |
Laser Type | Pulse ø7*145mm |
Laser Cavity Length | 117mm |
Spot Size | 0.2-3.0mm |
Cooling System | Water Chiller |
Observation System | CCD/microscope(optional) |
Shielding Gas | Hydrogen(optional) |
Output focal Length | 80mm/120mm/150mm/200mm |
Worktable Size | 600*1100mm |
Lifting Size | worktable=500mm light path=600mm |
Worktable Loading | 50KGS |
Total Weight | 150KGS |
Why Choose us
1. 13 years experience in producing laser marking, engraving, cutting, welding field.
2. Customer-orientated enterprise and manufacturer.
3. Wish to provide benefit to agents and customers.
4. Free proofing and marking solutinons, long-life sales service.
5. Engineer offers free training and guide online, some area offer door-to-door service.
6. The best choice of 10000+ customers and enterprises.
7. Chuke is your best partner for future.
8. Factory visit available any time.
9. OEM is available.
Application Feild Arc Laser Weld Aluminum to Steel Electrode Laser Welding Machine
Laser welding machine application scope: sanitary ware industry: pipe joint, variable-diameter joint, three-way, valve, sprinkler welding.
Glasses industry: precision welding of buckle and outer frame of stainless steel, titanium alloy and other materials.
Hardware industry: impeller, kettle, handle, thermos cup, complex stamping parts, casting parts welding.
Automobile industry: engine cylinder pad, hydraulic tappet seal welding, spark plug welding, filter welding, etc.
Medical industry: welding of stainless steel seals and structural parts of medical instruments and devices.
Electronic industry: solid state relay seal welding, connector connector welding, mobile phone, USB and other metal shell and structural parts welding. Welding of motor housing and connecting line, fiber optic connector and so on.
Household hardware, kitchen utensils and sanitary ware, stainless steel door handle, electronic components, sensors, clocks and watches, precision machinery, communication, handicrafts, automobile hydraulic tappet and other industries of high strength products welding, metal stainless steel steamer automatic laser welding machine.
Advantages about Arc Laser Weld Aluminum to Steel Electrode Laser Welding Machine
1. Fast welding efficiency, compact machine, easy to operate, greatly improve work efficiency.
2. It has higher electro-optical conversion efficiency, better beam quality, less maintenance cost and higher welding speed than current optical fiber transmission welding.
3. Laser welding machine is widely used, as long as it is stainless steel, aluminum, copper, gold and silver jewelry can be welded, including triangular valves, sensors, medical devices, stainless steel sink, tap water fittings, stainless steel circular pipe three-way pipe elbow, floor drain, door knob hand lock, thermos cups, kitchen utensils and so on.
4. Simple operation and easy to use, energy saving and environmental protection efficiency of ultra-low consumption materials.
5. Affected by the heat area is small, advertising words without deformation black phenomenon.
6. The welding depth is large and the welding firmness is high.
7. Optical fiber transmission, good welding quality, uniform welding spot, no color difference bump phenomenon.
