| Name: | Laser Welding Machine Mold Repair | Power: | 300W |
|---|---|---|---|
| CNC: | Yes | Color: | Blue |
| Customized: | No | Cooler: | Water Cooling |
| High Light: | cnc laser welding machine,fiber optic welding machine |
||
Laser Welding Injection Mold Repair Welding Equipment in Cad Welding Mould Sales

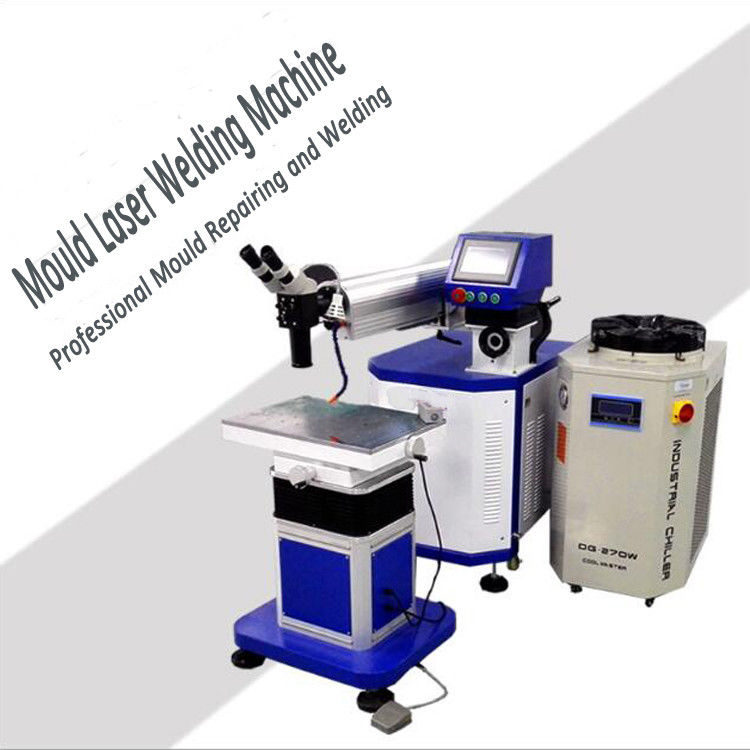

Mould Repair Laser Welding Machine Description
1. This is a high-power laser welding machine, double-layer laser source, the first choice to improve production and use.
2. It adopts imported ceramic concentrating cavity in the UK, which is resistant to corrosion and high temperature. The life of the cavity is 8-10 years, and the life of the xenon lamp is more than 8 million times.
3. High power microscope, 10x magnification, cross cursor indication, and automatic light blocking with high speed LCD light valve. The protective gas is output synchronously with the laser to ensure the beautiful solder joints.
Mould Repair Laser Welding Machine Application

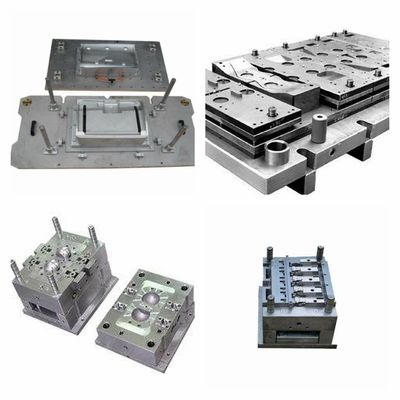

Wide range of applications, industrial and household, is the best choice for mold manufacturers, precision spot welding, high efficiency repair molds, extend mold life, greatly reduce factory costs.
Suitable for angle iron, stainless steel plate, square tube, carbon steel, galvanized material, wrought iron furniture, security window, staircase, handrail, cage, carport, color steel plate, locomotive parts, etc.
Mould Repair Laser Welding Machine Specification
| Max Laser Power | 300w |
| Max Single Pulse Energy | 120J |
| Laser | ND:YAG |
| Laser Welding Frequency | ≤100Hz |
| Laser Welding Depth | ≤3mm |
| Pulse Width | 0.1~25ms |
| Focal Spot Diameter | 0.2-3.0mm |
| Output Light Path | 1~4 optional |
| Worktable Range | 300*200 optional |
| Positional System | Red light or CCD, Microscope |
| Power Supply | 220V±10%, 380V/50Hz/60A |
| Main Machine Size | 1170*1250*560mm |
| Worktable Loading | 150kg |
Mould Repair Laser Welding Machine Features
1. Good craftsmanship, good material and peace of mind.
2. Factory direct sales, quality assurance, one year warranty.
3. Free online training, one-on-one coaching.
4. New high-quality components, advanced production technology, stable welding, durable machine.
5. Easy to operate, providing you with a precise welding experience.
Why Choose Chongqing Chuke?
1. Alibaba ten-year member, committed to producing high quality laser products.
