Product Details:
Payment & Shipping Terms:
|
| Name: | Fiber Laser Marking Machine | Color: | Red |
|---|---|---|---|
| Application: | Metal Or Non-metallic | Condition: | New |
| CNC: | Yes | Marking Area: | 110*110mm |
| Marking Speed: | 7000mm/s | Software: | EZCAD |
| Warranty: | 2 Years | Weight: | 75kg |
| High Light: | laser marking device,metal marking equipment |
||

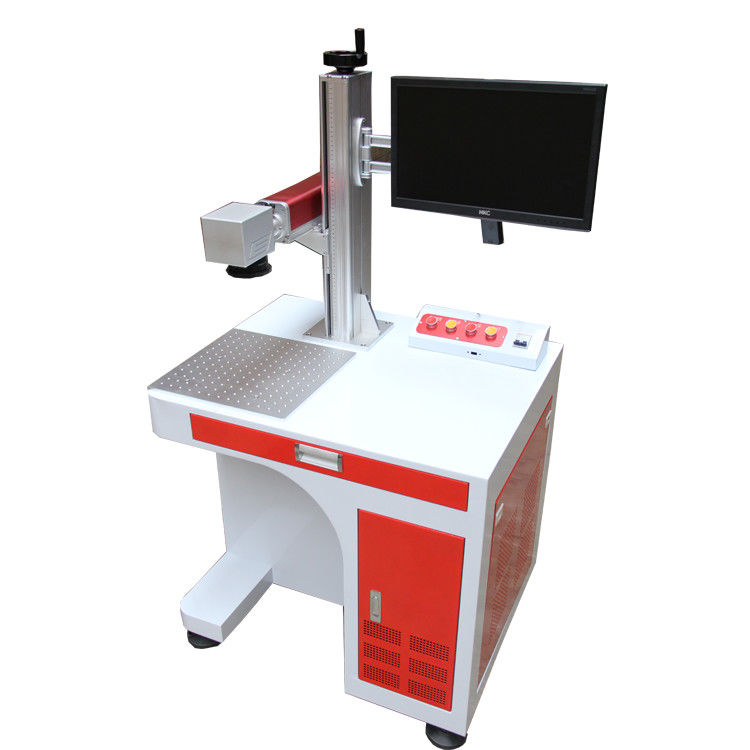

Chuke Factory Quality 20W Desktop Laser Marking Machine Metal Engraver QR Code
-------------------------------------------------------------------------------------------
1. 20W Laser Marking Machine Feature
1). Compact: The high-tech product which is combined of laser device, computer, auto controller and precision machinery.
2). High Precision: Re-position precision is 0.001mm.
3). High Speed: Imported scanning system makes the scanning speed is up to 7000m/s.
4). High Reliability: MTBF>100,000 hours.
5). Energy Saving: The efficiency of optic-electrical converting is up to 30%.
6). Low Running Cost: No wearing part. Free maintaining.
2. 20W Laser Marking Machine Application
1). Applicable metal material: stainless steel, iron, copper, aluminum, gold, silver etc.
2). Applicable non-metallic material: PVC, plastic, leather, acrylic etc.
3. 20W Laser Marking Machine Detail
1). Marking head
The Marking head is SINO-GALVO,SUNNY or SCANLAB. Fast response ability <0.7ms can realize high speed marking and high precision, if you need flying marking machine, we can custom-made the marking head.
2). Field Lens
Improve the ability of edge beam incident to the detector, detector photosensitive non-uniform illumination on the surface of the homogenization. The field lens area is 100x100,175x175,300x300mm.
3). Laser power source
Power supply for fiber laser marking machine, power supply foot, long service life.
4). Aluminium Worktale
Simple and stable when marking, we support optional marking area, standard marking area is 110*110mm.
5). Switch button
Push switch, every button with different color will be clear and clarity.
6). Computer controller
Conform HD LCD, all functions and operations can be completed by PC, will use far less than power an appropriate sized with confortable visual.
7). Our laser marking machine will equip the following free settings.
4. 20W Laser Marking Machine FAQ
Q1. Laser Machine Warranty:
A: Whole machine with 24 months quality warranty, extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
Q2.What control system it use ?
A:BJJCZ control system.
Q3.Which kind of machine is more suit for me?
A:It is according the material and processing thickness and the working area.
Q4.How to support me if i don't know how to use it?
A:Free training within the warranty by WhatsApp, Skype, Fax, Mail, Wechat, QQ. We also can dispatch our technician to customer’s company to provide training and support if customer agree the air ticket and hotel.
Q5.How transport?
A:By sea or by air.
