FDA Portable Dot Peen Marking Machine For Vin Number / Chassis Number

China FDA Portable Dot Peen Marking Machine For Vin Number / Chassis Number supplier
FDA Portable Dot Peen Marking Machine For Vin Number / Chassis Number supplier FDA Portable Dot Peen Marking Machine For Vin Number / Chassis Number supplier FDA Portable Dot Peen Marking Machine For Vin Number / Chassis Number supplier FDA Portable Dot Peen Marking Machine For Vin Number / Chassis Number supplier FDA Portable Dot Peen Marking Machine For Vin Number / Chassis Number supplier FDA Portable Dot Peen Marking Machine For Vin Number / Chassis Number supplier

Large Image :  FDA Portable Dot Peen Marking Machine For Vin Number / Chassis Number

Product Details:

Place of Origin: China(mainland)
Brand Name: CHUKE
Certification: FDA,ISO,CE
Model Number: PMK-G01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1300-1600 per set
Packaging Details: Packing in carton,45*45*55cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 600 sets per month
Contact Now
Detailed Product Description
Needle Material: Imported Alloy Drive Type: Pneumatic
Colour: Blue Controller: 7"LCD Touch Screen
Marking Characteristic: Plus Hard Product Name: Portable Dot Peen Marking Machine For Vin Number / Chassis Number
Marking Area: 40x80mm Marking Materials: Above HRC60 Need Special Stylus
Marking Deepth: 0.01-1mm Power: 300w/110V/220V

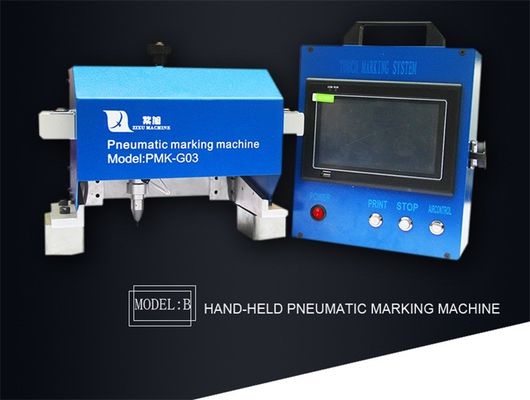

Portable Dot Peen Marking Machine For Vin Number / Chassis Number


Principle:

The computer controlled printing needle moves in a two-dimensional plane of X and Y. At the same time, the printing needle is subjected to high frequency impact motion under the action of compressed air, so as to print beautiful marks on the workpiece.


Application:

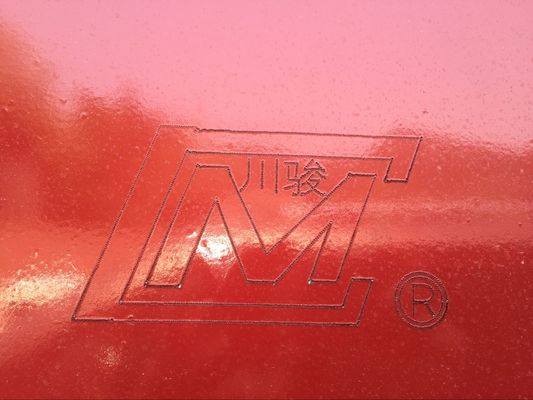

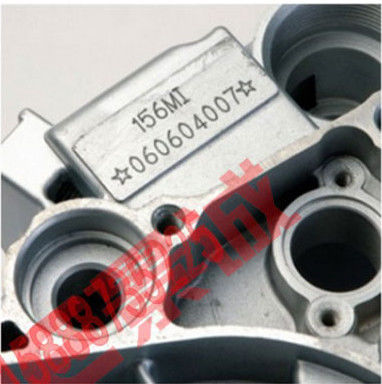

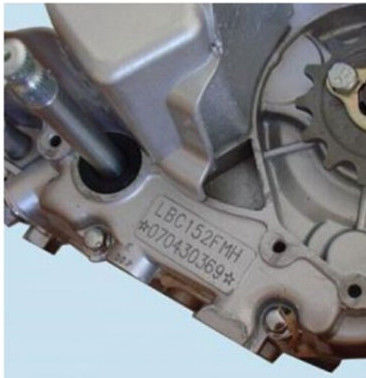

It is widely used in automobile beam. Markings for motorcycle frames, large pipes, special-shaped pieces, nameplates, and various workpieces that are not easily moved.
FDA Portable Dot Peen Marking Machine For Vin Number / Chassis Number

FDA Portable Dot Peen Marking Machine For Vin Number / Chassis Number



Portable Dot Peen Marking Machine parameter

model Pneumatic marking machine
weight 20kg
Machinpower <300w
Power supply 220v/110v
Strokefre quency 300times/s
Marking speed 2-5 characters(2x2mm)/s
Marking depth 0.01 to 1mm (Vary to the material)
Standard marking area 80x40mm,130x30mm,140x80mm,200x200mm



Usage method

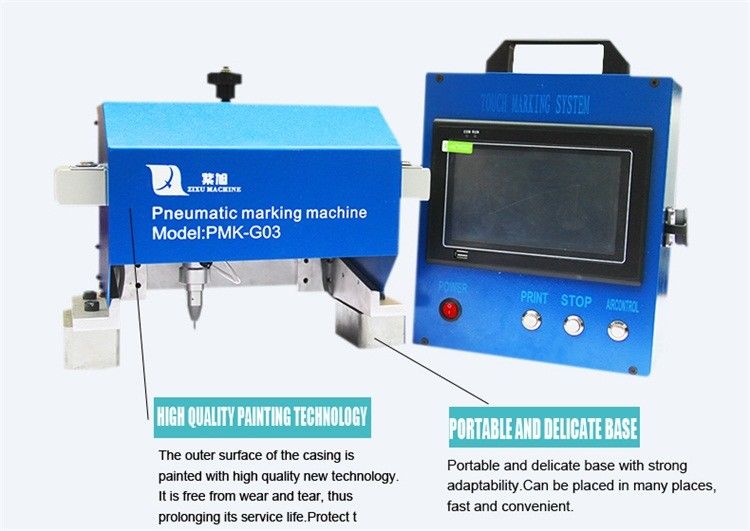

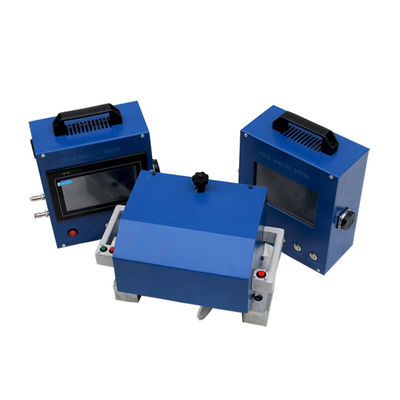

The pneumatic portable marking machine is designed with two body. The head part of the machine is handheld directly, and the object is printed




Product features

Our marking head is designed to be small, sturdy and easy to install. From plastic to the hardest steel (max. 65HRC), they can be marked at very high speed with point needles on all materials. The controller can automatically increase the serial number, date, working group and marking icon, OCV font or two dimensional identification code Data Matrix.


FAQ

Is your delivery fast?
We have the stock, the needle needle, after receipt of the money, the day can be shipped.


Design feature

The failure rate is very low and the maintenance is small
Low power, low cost, low price


Function

Portable pneumatic marking machine can print, English characters, Arabia numbers, special symbols, graphics, automatic serial number printing, the international standard VIN number printing, printing dot.


After service

Free training for 2-3 people, operation video support.

Packing and shipping

We have two types of packing: suit for air and ocean transportation.
Packing by corrugated board boxes, Light weight, freight is lower
Packing by wooden case, more security delivery with heavier weight and higher freight

Delviery time 7-15 working days
Type of shipping Express,air or sea
Terms of payment T/T,credit card,western union,paypal
package size 45*45*55cm
Gross weight 22KG
