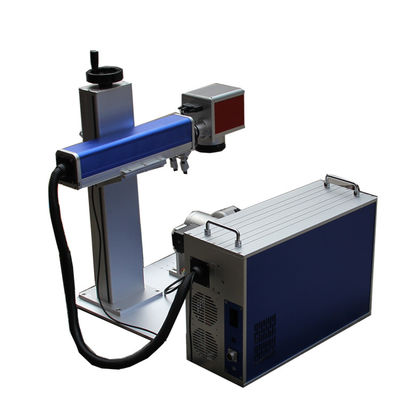

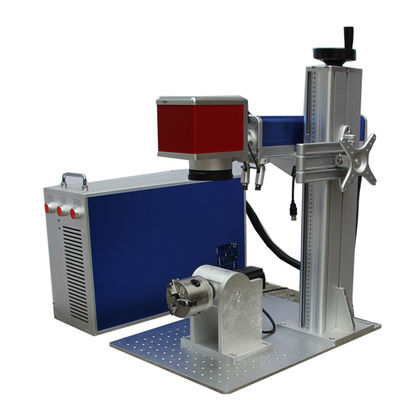

High Efficiency Mini Laser Engraving Machine For Hardware Tool , Fiber Laser Marking System

Principle

Laser Marking Machine, also known as laser laser engraving machine, laser engraving machine and other different names. The application of a very wide range, basically replaced the existing screen printing, inkjet and other industries, is a major industrial upgrading process .
Semiconductor end-pumped laser marking machine uses advanced fiber-coupled semiconductor laser end-pumped approach, with high reliability, long life, high energy conversion efficiency, good beam quality, low power consumption of the whole machine, all-solid-state semiconductor semiconductor Cold devices, laser source and resonator split structure, metal laser marker price, easy maintenance, lightweight, easy system integration and so on. Technical Features: Intelligent integrated software control High reliability, high stability, high security High-precision marking quality Low consumption, easy to maintain Applicable materials: such as nylon, ABS, PVC, PES, steel, titanium, copper and so on. Applications: Widely used in automotive, integrated circuit (IC), electronic components, silicon wafers, electronics, electrical appliances, communications, computers, watches, glasses, jewelry, decorative accessories and other industries. Average output power: 25W Laser wavelength: 1064nm Marking format: 70 × 70mm / 110 × 110mm / 150 × 150mm / 175 × 175mm (optional) Repeatability: ± 0.001mm, line width: 0.01mm, power: AC220V ± 15 % 50KHz 1KW "

Application:

Fiber laser can be any font and size of the logo code, including various types of graphics and two-dimensional code. Especially suitable for high-precision marking of metal and plastic materials, optical fiber machine can be static and flight marking, at the same time for a variety of production line speed online code. The use of high-quality lasers, with higher power, makes high-speed production line coding possible. The laser head uses an advanced polarizer system to ensure high-quality coding quality and high-speed output. Compact and compact structure design, easy installation, and has good stability.

Parameter

Usage method

After the laser marking machine, reverse the power of each component according to the above order:

1, the laser power supply current adjusted to the minimum (about 7A);

Turn off the computer

3, turn off the galvanometer power;

4, press the stop button;

5, turn off the key switch

6, disconnect the incoming power.

Through the above steps you can laser marking machine operation familiar

Product features

Laser marking machine is mainly used in some applications require more sophisticated, higher accuracy of the occasion, marking fine, energy saving, maintenance-free, for mobile phones, keys and other high-end products.

FAQ

Laser marking machine laser no reason: Remedy: 1, parameter settings, see the laser type is correct, it is the main reason for continuous light failure.
2, pulling nine core control line, small laser cutting plotter prices, see if there is control line loose. Connection is not reliable.
3, the power of the control line (nine core line) off, press the laser power point shoot key to analyze the power or motherboard failure.

Design feature

Marking software powerful, compatible with Coreldraw, AutoCAD, Photoshop and other software files; support PLT, PCX, DXF, BMP, JPGE, etc., can be used directly SHX, TTF fonts; support for automatic coding, printing serial number, Bar code, two-dimensional code, automatic number jumping and so on.

Function

Suitable materials and industrial applications, fiber laser marking machine is widely used in precision machinery, electronic components, telecommunications, molds, watches, glasses, printing, jewelry, metal products and other industries, especially for stainless steel high-speed scanning, light button, bit icon Engraved, mold processing, printing wheel carving on the depth, smoothness, fineness demanding areas. The device has the advantages of engraving applications, depth, speed, stable operation, fine graphics, placards nameplate marking machine how to choose.

After service

Installation and commissioning: According to the contract, our company free the equipment safety cloud to the designated domestic installation place within the stipulated time and send the technical service engineer on-site installation. Under the condition that the user has basic installation and commissioning equipment, the technical service engineer will provide 1-2 two days to install the machine debugging is completed for users to try, and to ensure that the installation and commissioning site neat, clean and orderly. (Remote areas will be shipped according to the product after installation and commissioning, that is, customers can receive the machine after normal use)

Packing and shipping

The stacking of objects shall not exceed the width of the forklift passage planned in the warehouse. The total height of the products to be piled up shall not be the 7th principle of the country of origin (the requirements for the number of layers refer to the large paper box).

Chuke Factory

Chongqing CHUKE in the code, inkjet printer in this area devoted endless enthusiasm and passion, CHUKE marking machine has been customer-centric, to create value for customers of the concept of quality , Service to win the market, sincerely hope that all sectors of the community and work together to create success and create brilliant.
