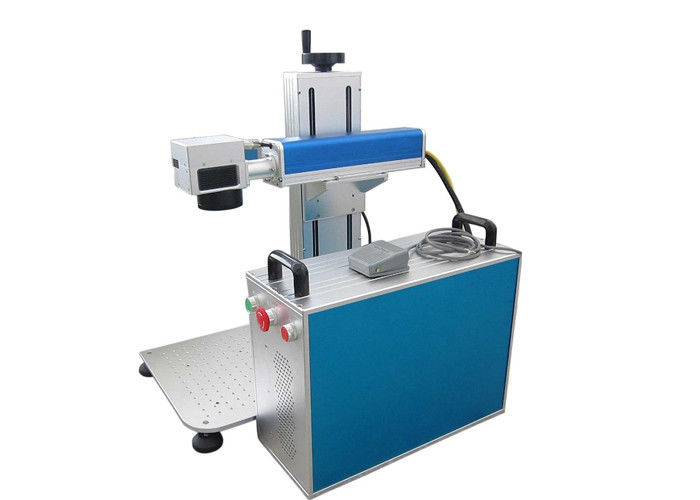

Black Colour Portable Laser Marking Machine On Stainless Steel Tube

Principle

The working medium for a laser can be gas, liquid or solid, and most gas lasers have a working medium consisting of atoms, molecules or a mixture of the two.The working medium for solid lasers consists of atoms or ions doped in certain crystals. The working medium for a liquid laser consists of molecules of high molecular weight dissolved in a liquid, all of which can "reverse the number of particles" and produce a laser output of a certain wavelength under certain pumping conditions.
YLP-ZX series fiber laser marking machine uses the world's advanced pulsed fiber laser.

Application:

laser marking machines handle nearly every industrial marking and DPM (Direct Part Marking) task. Metals, plastics, etc. are processed efficiently and contact-free. All desired contents are applied repeatedly accurate and reliably: 2D and alphanumeric codes, simple serial numbers, complex logos, graphics, structures. Depending on the material and application task, the process is laser marking, engraving or deep engraving.

Parameter

Usage method

1, connected to the external power supply.
2, Turn on the main power switch of the equipment main control box, check the water flow and water temperature.
3, start the computer and enter the Everbright laser marking system.
4, turn on the laser power switch and Q drive power switch
5, when the laser power READY light is on, press the laser power RUN button to light the laser krypton lamp
6, open the main control cabinet galvanometer power switch.
7, transferred to the graphics, set various parameters.
8, adjust the focus, infrared alignment marking location, began to work "

Product features

The portable fiber laser marking machine is designed by portable integrated structure. It is a new generation of laser produced by our advanced laser technology in the world.
Marking machine system. The optical fiber laser is used to output the laser, and then the marking function is realized by the high-speed scanning mirror system. High efficiency of electro-optic conversion in optical fiber laser marking machine
The mode is cool, the whole machine is small, the output beam quality is good, and the reliability is high. Engraving metal materials and some nonmetallic materials. Optical fiber laser is integrated with integral whole junction
Structure, no optical pollution and power coupling and loss, air cooling, high efficiency, long life and less maintenance.

FAQ

1."Marking machine without light or light intensity is not enough: 1, point shot normal, indicating no power failure.
2, the point is not normal, indicating a power problem.
3, the power is normal, connect the control line, with a multimeter to measure the switch control pin on the wiring board, no light, the normal voltage of 4 volts or more, less than 3 volts, the motherboard output is not normal; light, the foot Voltage should be below 2 volts, higher than 2.5 volts output is not normal. "

Design feature

1, the price discount, quality is determined without discount! With the industry standard marking machine compared to the price, cost-effective;
2, marking speed, high efficiency, the workpiece batch processing time is short, to achieve the profit per unit time and a single product;

Function

1, long service life of fiber laser, laser output power and stability, high reliability, 100,000 hours maintenance-free;
2, high electro-optical conversion rate, loss of power coupling, no consumables, saving operating costs for customers "

After service

CHUKE marking machine has a maintenance team, in some areas there are distributors, can provide localized services.

Packing and shipping

Manual handling attention gently, placing the ground should be smooth. Materials should be run to avoid running wires, pipes and uneven ground.

Chuke Factory

Chongqing  CHUKE is a professional commitment to the laser complete sets of equipment, machine vision, bar code reading and related high-precision testing of product development, production and sales of high-tech enterprises.
