Application: | Airplane Engine | Colour: | Black |
---|---|---|---|
Name: | Pin Marking Systems For Marking Metal | Marking Depth: | 0.01-1mm(vary To Material) |
Marking Materials: | Titanium Alloy Material | Service: | Providing Technology Service |
Profit Model: | OEM | Support Graphics Formates: | Serial Number |
High Light: | dot peen engraver,handheld dot peen marking system |

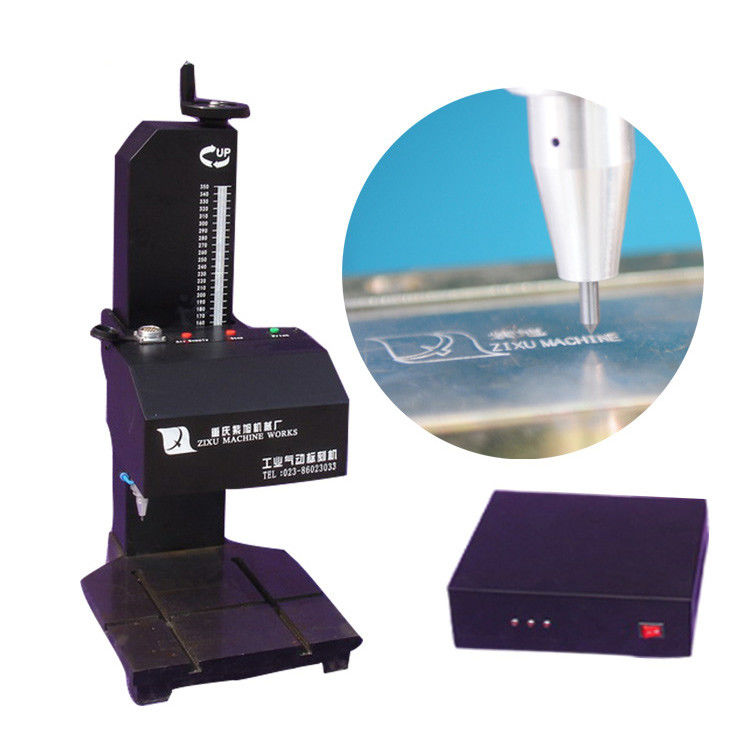

Industrial T6 Controller Pin Marking Systems For Marking Metal
Principle
portable dot pin marking machine is one of the most popular solution for such usage. A simple plug-nplay connectivity eases its use at great extent. Basic Ethernet connector avoids any compatibility conflicts raised with USB connector. A simple Ipv4 protocol marks its simplicity with higher data carrying capacity and cost efficiency.
Application:
Various mechanical parts, machine tools, metal products, metal pipes, gears, pumps, valves, fasteners, steel, instrumentation. , Mechanical and electrical equipment such as metal marking; plastic products
model | Dot pin marking machine |
weight | 50kg |
Machinpower | <300w |
Power supply | 220v/110v |
Strokefre quency | 300times/s |
Marking speed | 2-5 characters(2x2mm)/s |
Marking depth | 0.01 to 1mm (Vary to the material) |
Standard marking area | 80x40mm,130x30mm,140x80mm,200x200mm |
Usage method

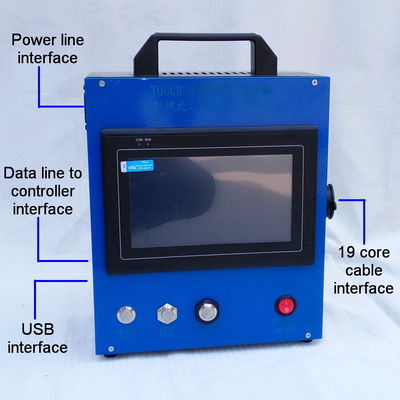

1 Press the back panel shown above, the computer system cable, the power connection;
2 one end of the control cable that is 19-core aviation plug with the back of the electric control box 19 core connector, the other end with the host 19 core connector;
3 Use Φ8 trachea to connect the pneumatic parts of the marking machine with the air source of the factory; 4 Start the computer; 5 Turn on the power of the control box;
6 according to the instructions of the software manual (or press the software interface prompts) enter the correct print content; 7 workpiece positioning, marking.
Product features
Limit switch: In the horizontal and vertical rail ends have a limit switch. It passes the limit signal to the control section. During the reset process, if one of the limit switches is closed, the motor that drives the motor in this direction will stop running. When the other motor is closed, both motors will stop. At this time, the computer will issue a command to let X, Y Move the motor a little to the positive direction, thus completing the reset process. At this time, the print pin is located in the upper left corner of the print range, that is, the origin. When printing, the print pin moves from this origin to the desired position for printing, and automatically returns to the origin when printing is completed.
FAQ
1. How to choose a suitable marking machine? Identify the product material, general metal pneumatic marking machine, fiber laser marking machine, individual rigid plastic can also be used pneumatic marking machine, but to take into account the thickness of the product. Non-metallic (such as ceramics, synthetic materials, rubber leather, paper, vernier caliper) CO2 laser marking machine.
Design features
Pneumatic marking machine marking head place switch using Japanese OMRON products, high precision, good reliability, our company uses the most advanced circuit design, and SCM participation control mode, the printer has a very long continuous working hours, stable operation reliable
After service
1. We sell the whole one year warranty, life-long maintenance;
2. Free installation, debugging my company sold products;
3. Free training for the use of operators, maintenance staff;
4. Free equipment upgrade software;
Packing and shipping
Packing in carton case, The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
Delviery time | 7-15 working days |
Type of shipping | Express or by sea |
Terms of payment | T/T,credit card,,paypal |
package size | 56x55x75cm |
Gross weight | 75kg |
