Product Details:
Payment & Shipping Terms:
|
| Controller: | 7"LCD Touch Screen | Name: | Dot Punching Machine |
|---|---|---|---|
| Marking Materials: | Stainless Steel,metal Material | Application: | Motorcycle |
| Power: | 300w | Service: | Can Customize |
| Profit Model: | Agent | Support Graphics Formates: | Company Name/logo |
| High Light: | dot punching machine,handheld dot peen marking system |
||

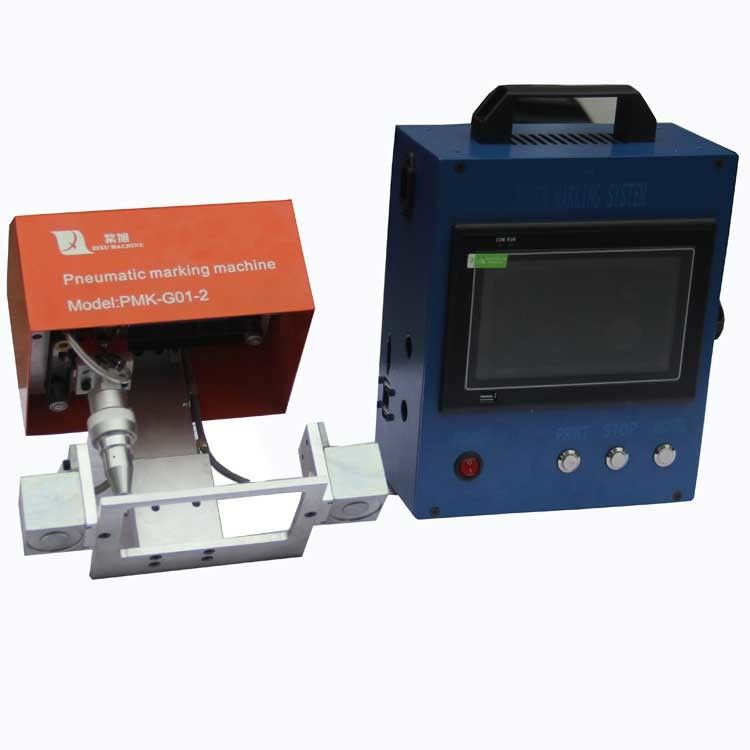

Portable Dot Punching Machine Print The Engine Number Free Sample
Principle
The operator according to certain rules will be printed characters and graphics input to the computer, the computer-controlled print pin by character, the trajectory of the graphics movement, while compressed air so that the print pin reciprocates at a frequency of 300 times per second, thus playing on the workpiece by Continuous dot matrix composed of characters or graphics
Application:
Pneumatic industrial marking printers are mainly used in machinery, automobiles, motorcycles and other fields, the automotive, motorcycle parts and other mechanical products for printing.
| model | Dot pin marking machine |
| weight | 22kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 80x40mm,130x30mm,140x80mm,200x200mm |
Usage method
Pneumatic marking machine simply connect the power and controller, write the contents of the controller to be marked, press the print button to start printing
Product features
Control during printing In the process of printing, the gas valve switch on the controller can be used to control the opening or closing of the gas, or printing can be performed by the print button on the printer head (the print button on the controller also functions as a printer)
FAQ

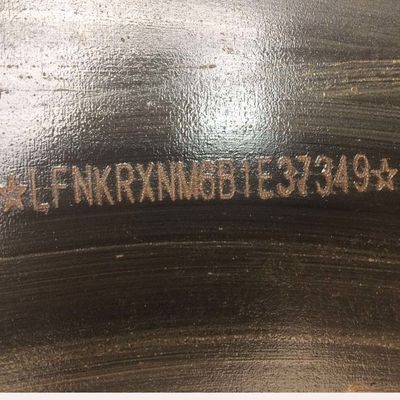

Print content? For serial number printing, VIN standard printing, time printing, bar code scanning and printing, automatic storage of traceable traceable contents 2. How much depth can be achieved? Print speed is 3-8 characters mm / s, the depth can reach 0.01-1mm
Design features
Pneumatic marking machine imported pneumatic components, high-speed valve produced by the United States MAC company, the life of up to 100 million times more, pneumatic marking machine marking needle material imported alloy material, the needle hardness up to HRA95, needle life greatly increased
After service
1. We sell the whole one year warranty, life-long maintenance;
2. Free installation, debugging my company sold products;
3. Free training for the use of operators, maintenance staff;
4. Free equipment upgrade software;
Packing and shipping
Packing in carton case, The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
| Delviery time | 7-15 working days |
| Type of shipping | Express or by sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 45x45x55cm |
| Gross weight | 22kg |
Chuke Factory
Chuke Intelligent Machinery & Equipment Co., Ltd specializes in the development and production of pneumatic marking machine, pneumatic marking machine parts, pneumatic marking needle. R & D and production of marking needle sales 11 years, is the earliest production marking needle manufacturers. Marking needle production from the ordinary lathe equipment to fully automatic CNC equipment, marking needle technology is the beginning of several processes, and now has a fully automated equipment
Contact Person: zoya zhou
