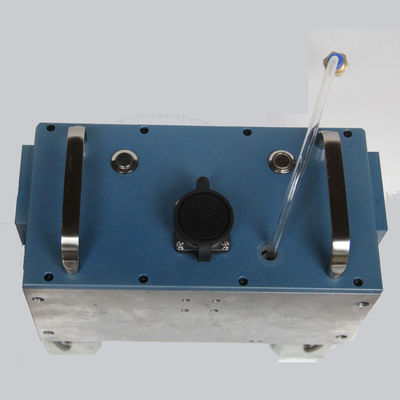

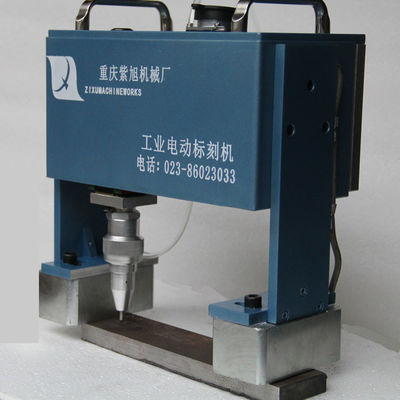

Customized Dot Marking System Machine For Flat Surface Engraving
Principle

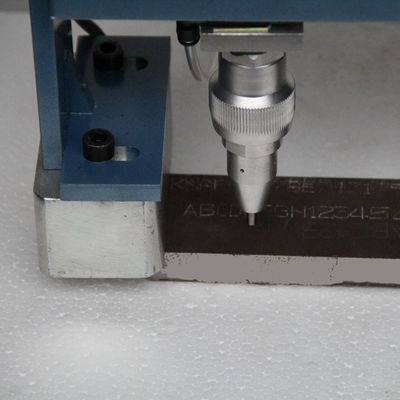

To print Chinese and English characters, the contents of the graphics input to the computer, computer marking software to change the content of digital control signals sent to the controller to drive the print on the workpiece hit by a continuous dot matrix characters and graphics; pin XY Dimensional plane according to the set track movement, while the print pin under the action of compressed air in the workpiece surface to print out by the dense lattice composed of concave mark.
Application:

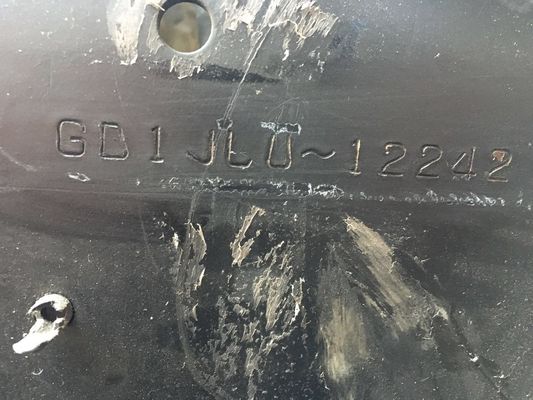

1) Automobiles, motorcycles and other engines, pistons, body, frame, chassis, connecting rod, engine, cylinder and other parts number, name, trademark, date of production printing;
2), electric cars, bicycles, motorcycles and other plus frame printing;
3), a variety of products, vehicles, equipment, product label printing;
4) All kinds of mechanical parts, machine tools, metal products, metal pipes, gears, pumps, valves, fasteners, steel, instrumentation, mechanical and electrical equipment, and other metal marking; plastic products.
| model | Dot pin marking machine |
| weight | 23kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 130x30mm |
Usage method
Power conditions: AC voltage 220 ± 10%, 50Hz ± 1%, power ≤ 1Kw;
⑵ gas source conditions: 0.3-0.8Mpa compressed air, dry and pure, can be an industrial gas source, air compressor can also be used for gas supply;
⑶ Relative Humidity: <85% at 25 ℃;
⑷ relative temperature: 6 ℃ - 38 ℃;
⑸ area: 1 square;
Product features
Worktable using precision mold casting, 64 subdivision drive, imported linear guide, high-precision stepper motor high reliability. Applications: Suitable for all kinds of metal and non-metallic plane direction automatic marking.
FAQ
1 electric marking machine print speed and depth can reach how much? Print speed is 3-8 characters mm / s, depth can reach 0.01-1mm 2. Reset function how? Set the number of reset function, each marking without zero-return detection, and can be positive and negative sequential marking greatly save time and improve efficiency
Design features
Chongqing CHUKE as a leader in the marking machine industry, you can trust the business partners. Our sales and service network covers the whole country. At the same time, we set up overseas branches and permanent technical service personnel to provide our customers with comprehensive pre-sales, mid-sales and after-sales technical support and services to make your choice more secure, peace of mind, Comfortable.
After service
1. We sell the whole one year warranty, life-long maintenance;
2. Free installation, debugging my company sold products;
3. Free training for the use of operators, maintenance staff;
4. Free equipment upgrade software;
Packing and shipping
Packing in carton case, The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
| Delviery time | 7-15 working days |
| Type of shipping | Express or by sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 45x45x55cm |
| Gross weight | 23kg |
Chuke Factory
Chuke Machinery Factory was established in 2006, before my company staff have many years of machining experience, so initially I was established in the production of marking the needle business, with the customer's needs, our company has gradually achieved business expansion , So far the company's technology has been in the forefront of domestic counterparts, customized business reached a new level, both pneumatic marking machine or laser marking machine have been recognized by customers, marking needle is occupied the vast domestic market Part of the market. Our products have been certified by world famous quality system, including: ISO, CE, PDA, TUV and so on. Recently, the company is capturing new technical problems and providing brand new services to customers with higher requirements. Our products are completely free within the warranty period of repair and replacement, the warranty period only charge a cost, at any time to solve the urgent needs of customers, in order to solve customer needs for the purpose. No matter where you are, we can serve you.
