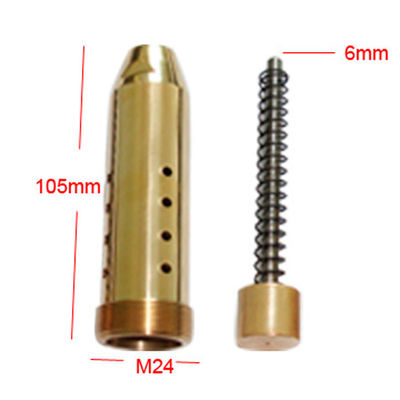

6mm Marking Machine Needle Low Noise Pneumatic Marking Machine Accessories

China 6mm Marking Machine Needle Low Noise Pneumatic Marking Machine Accessories supplier

Large Image :  6mm Marking Machine Needle Low Noise Pneumatic Marking Machine Accessories

Product Details:

Place of Origin: China(mainland)
Brand Name: ZIXU
Certification: FDA,CE,ISO
Model Number: MMK-C01

Payment & Shipping Terms:

Minimum Order Quantity: 1 0 set
Price: USD 10-100 per set
Packaging Details: Packing in carton,20*10*20cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Min Quantity: 1 Set Brand: Chuke
Needle Material: Aluminum Colour: Yellow
Marking Characteristic: Big Power Apply For: Engine

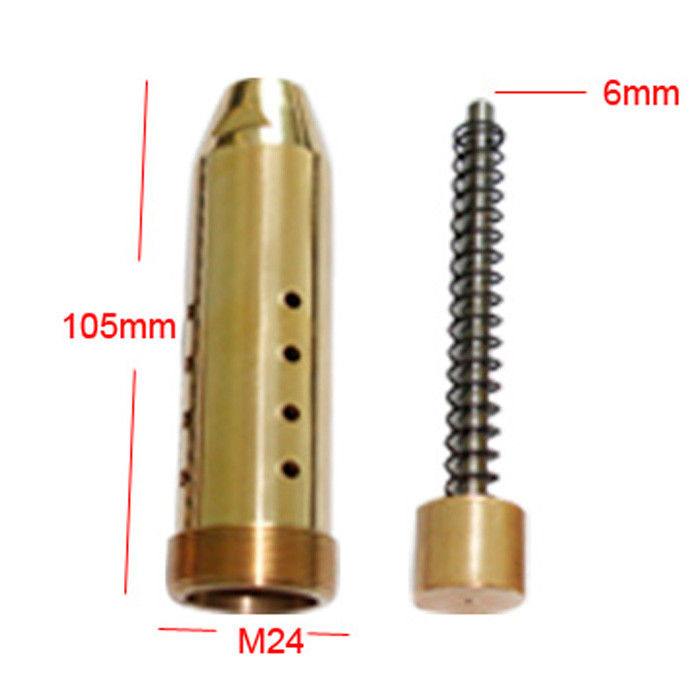

6mm Marking Machine Needle Low Noise Pneumatic Marking Machine Accessories



Principle



The pneumatic marking needle is a computer controlled printing needle moving in a two dimensional plane of X and Y. At the same time, the printing needle is subjected to high frequency impact motion under the action of compressed air, so that a mark with certain depth is printed on the workpiece.



Application:



The marking needle is the only consumable of the pneumatic marking machine. It is the accessory of the marking machine. It is a kind of printing trademark, technical parameter, number, date, name and so on on the metal sign of stainless steel, copper, aluminum and so on.

6mm Marking Machine Needle Low Noise Pneumatic Marking Machine Accessories



Usage method



Print depth: the depth of a typeface is determined by the size of the air pressure, the distance between the print needle and the printed piece. (the depth of the print can be adjusted by adjusting the size of the air pressure when the distance between the print needle and the printed piece is constant. The pressure at this time cannot be bottom to 0.4Mpa). (the depth of the print is adjusted by adjusting the distance between the print needle and the printed piece in the condition of constant pressure. In the use of gas station air pressure to 0.5-0.7Mpa. Such as the use of air compressor when the gas pressure is 0.5-0.6Mpa. Note: in the use of air compressor air supply and space compressor should be selected more than 3HP air compressor to ensure the stability of the air pressure).



Product features



Diamond needle core
The needle is inlaid with diamond, the main hardness is higher than HRC60 degrees, and it is suitable for the marking of special hardness materials, such as alloy cutting tools, etc.



type marking needle
Size 3mm
length 56mm
Type pneumatic marking needle



FAQ



How many kinds of pneumatic marking needles are there at the first moment? There are more than two hundred types of pneumatic marking needles in the first moment, and what are the sizes and sizes of the needles in different sizes?
The sealing ring spring 1 sets



Function



The marking needle shell color has red, yellow, green, blue, black, marked needle shell plating color, not only beautiful but also can effectively protect the shell



After service



One warranty for the whole machine.Three months for the marking needle.



Packing and shipping



Packaging material: carton case with foam inside.

Shipping: 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)



Delviery time 1-3 working days
Type of shipping Express
Terms of payment T/T,credit card,western union,paypal
package size 20x20x10cm
Gross weight 0.5KG/5 piece





Chuke Factory



Chongqing Chuke Intelligent Machinery &Equipment Co.,Ltd
Founded in 2006, the company occupies an area of 2,000 square meters, with annual production of 500 laser marking machines, pneumatic and electric marking Machine more than 1,000, marking needle (pneumatic marking needle up to more than 100 species) annual output of more than 100,000 sets.

Since the establishment of the company, products have been loved all over the world. Such as Britain, Spain, France, Germany, the United States, Dubai and Brazil, South Korea more than 30 countries and regions. After we constantly improve and perfect the quality of our products, we have obtained CE, ISO9001, FDA, TUV certificates and won the favor and approval of a large number of customers at home and abroad.

More than 10 years of development history, the company always adhere to the "integrity, quality, innovation and service" concept. Absorption of new ideas, strict quality control, a full range of service tracking, adhere to make high-quality products. Now has a group of capable managers and a high-quality professional and technical team. Our quality of life, time for the credibility of the business as the
