Big Power pneumatic Stylus Marking Machine Accessories No Noise

China Big Power pneumatic  Stylus  Marking Machine Accessories No Noise supplier

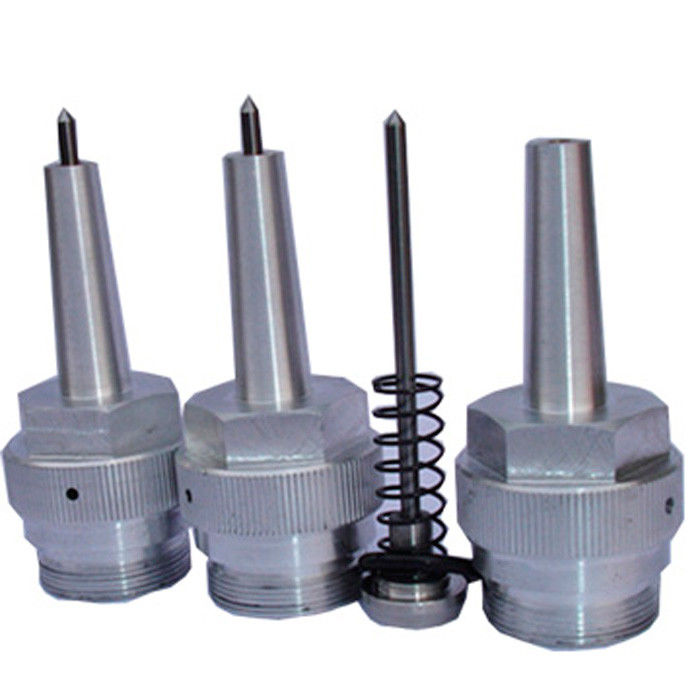

Large Image :  Big Power pneumatic Stylus Marking Machine Accessories No Noise

Product Details:

Place of Origin: China(mainland)
Brand Name: ZIXU
Certification: FDA,CE,ISO
Model Number: MMK-C01

Payment & Shipping Terms:

Minimum Order Quantity: 1 0 set
Price: USD 10-100 per set
Packaging Details: Packing in carton,20*10*20cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Min Quantity: 1 2 Set Marking Depth: 0.01-1mm
Apply For: Chisel Tool Steel Advantage: Affordable
Screw Thread: M32 Length: 60mm

Big Power pneumatic Stylus Marking Machine Accessories No Noise





Principle



The first engraved pneumatic printing needle realizes the upper and lower movements of the printing needle through the lower pressure of the compressed air and the reaction force of the spring.



Application:



The marking needle is the only consumable of the pneumatic marking machine. It's the accessory of the marking machine
The effect of marking is greatly influenced by the marking needle, so it is very important to choose the needle carefully.

Big Power pneumatic  Stylus  Marking Machine Accessories No Noise

Usage method



At the moment of printing needle installation: print needle by needle print is outside the wire, the needle seat is installed inside the. When installing the alignment thread rotated by hand to the bottom of the seat can be. (Note: do not use other tools to force rotation, this may damage the print needle and a needle seat thread).



Product features



Our company's marking needle is adapted to different needs, mainly divided into the following four grades.
A domestic alloy needle core
It is mainly used in the soft metal materials such as aluminum and so on. The biggest advantage is the price is cheap.
B imported alloy needle core
The hardness of the needle core is HRA93.8 degree, and it can be widely used in all kinds of metal materials with hardness less than HRC60.
For example, copper, aluminum, stainless steel, etc.
The wear resistance is three times that of the needle core of the ordinary alloy.





type marking needle
Size 4mm
length 110mm
Type pneumatic marking needle



FAQ



The running track of the printing needle is not normal? There are errors in the file input process. For example, there is an invisible print in the print area. The document should be re established according to the operating guide.
The 2. control program is destroyed. The control software should be reinstalled.
3. computer hardware or other soft faults. The computer is overhauled by the professional staff.
4. the motor control drive board is damaged in the controller. The control drive board should be replaced.





Function



Our marking pin alloy can be chosen from 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm and the length can be customized from 30-200mm.



After service



Training how to install the machine marking needle on the machine



Packing and shipping




Packaging material: carton case with foam inside.



Delviery time 1-3 working days
Type of shipping Express
Terms of payment T/T,credit card,western union,paypal
package size 20x20x10cm
Gross weight 0.5KG/5 piece





Chuke Factory



Chongqing Chuke Intelligent Machinery &Equipment Co.,Ltd
, conveniently located at the foot of beautiful Mount Jinyun ,the famous scenic of Beibei ,Chongqing. Founded in 2006, we are specialized in the research and production of marking machine and its main spare parts. The production and consumption reaches 10 thousand pieces a year, this makes us being the largest supplier of marking pin set.
Our success is built on providing innovative solutions to contemporary marking problems. Now we almost cover all relating marking products, marking range from metal to nonmetal products, to cater the diversity marking requirements of customers.
Based on several years of extensive experience in the field of domestic market, since 2009, our company gained independent import and export rights and starts to exporting the machine to the overseas market, and earned an international reputation for our good quality and service.
