Product Details:
Payment & Shipping Terms:
|
Marking Prouduct: | Nameplate | Driven Type: | Pneumatic |
---|---|---|---|
Controller: | Touch Screen | Name: | Pneumatic Marking Machine For Nameplate |
Feature: | Small Power Consumption | Service: | Conceptual Design |
High Light: | dot punching machine,dot peen engraver |

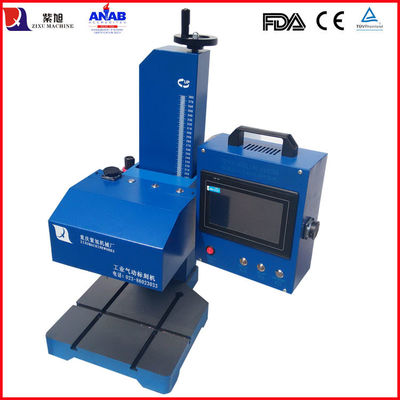

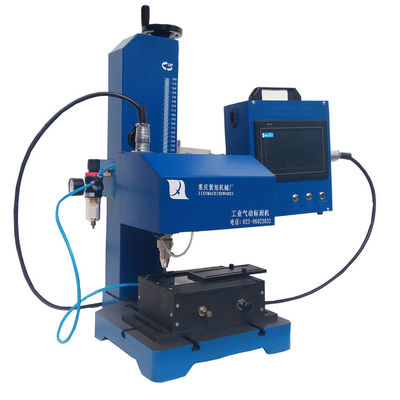

Dot Machine / Pneumatic Marking Machine For Nameplate
Principle
The air pressure regulator is used to supply the air pressure that vibrates the needle and adjust the impact of the needle.
Application:

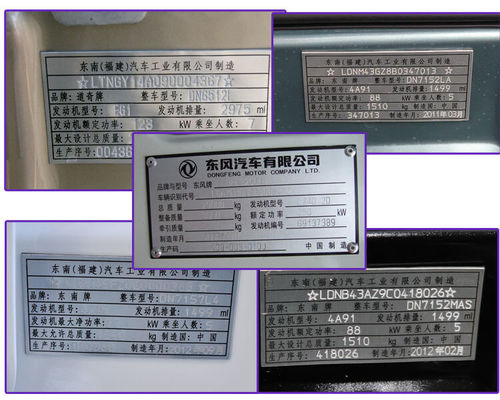

Pneumatic marking machine's advantage is that the mark can be darker and deeper, whether it is graphics, text, product serial numbers, trademarks, etc., pneumatic stamping machine code, marking permanent permanent mark, in general, marking the workpiece on the low volume About 2000 (10pcs 5mm high character calculation), can choose pneumatic marking machine.
model | Dot pin marking machine |
weight | 67kg |
Machinpower | <300w |
Power supply | 220v/110v |
Strokefre quency | 300times/s |
Marking speed | 2-5 characters(2x2mm)/s |
Marking depth | 0.01 to 1mm (Vary to the material) |
Standard marking area | 140x80mm |
Usage method
The use of pneumatic marking machine, connecting the computer software, control the needle dot matrix marking, the formation of fonts and patterns in the mold, metal parts industry widely used, then the use of pneumatic marking machine in the production What are the precautions?
1. Needle safety: At the practice stage to remind myself that the gas source switch is off, the needle height is higher than the table blanker; familiar with, to remind myself, the next step will be how to get the needle, will not come across what. At the same time, to avoid the needles directly hit the table, playing more, table uneven, affecting the quality of the engraving.
2. File Security: Only copy can not be cut, otherwise it may fail. In order to prevent computer crashes or broken, please edit a good copy of the file, on the other computer's disk, usually do not download the Internet U disk or removable hard disk.
3. Accuracy issues: Reset hundreds of times each time to eliminate systematic errors.
Product features
Under normal circumstances, the pressure is set to 0.5MPa (general workpiece) or 0.2-0.3MPa (aluminum or nameplate). In the case of certain pressure, usually adjust the distance of the print pin to achieve different depths. You can achieve this by moving the handwheel up and down to print the mechanism
FAQ
Marking needle does not work
cause of issue
The needle does not vibrate or vibrate very weakly.
Check if the 'Ventilation' switch is on.
Note: You must also open the 'air valve switch' on the software and the 'air switch' on the marking machine head at the same time.
Check the pressure of the size.
Normal working pressure is: 0.4 ~ 0.6MPa pressure
Note: When using gas station or air compressor to supply air to marking machine, the output pressure of gas station or air compressor must be greater than the air pressure of pressure regulating valve for marking machine. Such as: gas station or air compressor output pressure 0.8 MPa, pressure regulator for marking machine pressure 0.4 MPa-0.6 MPa)
Note: If the use of air compressor air supply, air compressor is best used 3 MPa above.
Design features
Standard machine motor using a custom two-phase hybrid stepping motor, the rotor using the highest quality materials, with high step accuracy, high speed stability, high torque, so that the printing effect is very beautiful
After service
1. We sell the whole one year warranty, life-long maintenance;
2. Free installation, debugging my company sold products;
3. Free training for the use of operators, maintenance staff;
4. Free equipment upgrade software;
Packing and shipping
Packing in carton case, The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
Delviery time | 7-15 working days |
Type of shipping | Express or by sea |
Terms of payment | T/T,credit card,,paypal |
package size | 45x54x90cm |
Gross weight | 67kg |
Chuke Factory
Chuke Machinery Factory was established in 2006, before my company staff have many years of machining experience, so initially I was established in the production of marking the needle business, with the customer's needs, our company has gradually achieved business expansion , So far the company's technology has been in the forefront of domestic counterparts, customized business reached a new level, both pneumatic marking machine or laser marking machine have been recognized by customers, marking needle is occupied the vast domestic market Part of the market. Our products have been certified by world famous quality system, including: ISO, CE, PDA, TUV and so on. Recently, the company is capturing new technical problems and providing brand new services to customers with higher requirements. Our products are completely free within the warranty period of repair and replacement, the warranty period only charge a cost, at any time to solve the urgent needs of customers, in order to solve customer needs for the purpose. No matter where you are, we can serve you.
Contact Person: zoya zhou
