| Name: | Cell Phone Shield Spot Welding Equipment | Condition: | New |
|---|---|---|---|
| Power: | 200W | Pulse: | 100J |
| Wavelength: | 1064nm | Warranty: | 1 Year |
| High Light: | stainless steel welding equipment,cnc laser welding machine |
||
13 Years' Experience Supply OEM Fiber Optic Welding Machine Cell Phone Shield

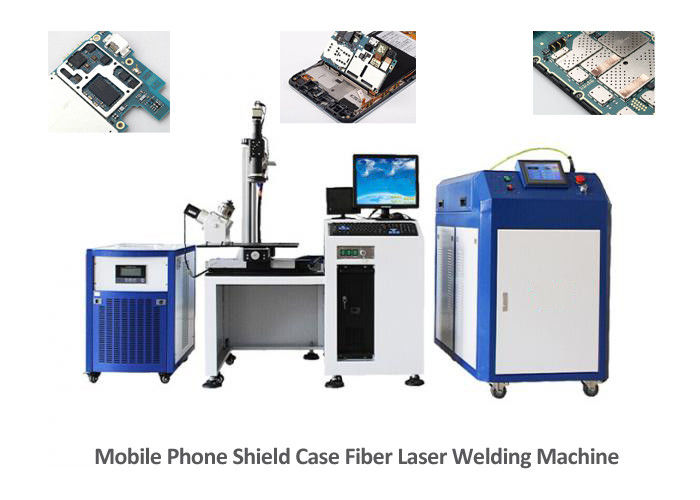

Cell Phone Shield Fiber Laser Spot Welding Machine Description:
1. Cell phone shield fiber laser spot welding machine is to use high-energy laser beam to conduct local heating of the material at the connection point of the tiny stainless sheet.
2. The energy of the laser beam diffuses to the internal material through heat conduction, and then the material is melted to form a melting pool to achieve the purpose of welding.

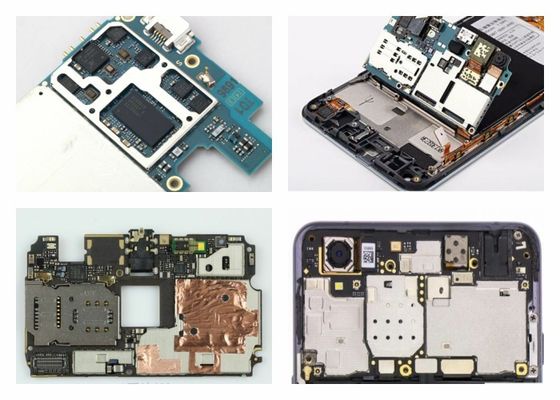

3. It can achieve intermolecular connection, mainly for thin wall materials, precision parts of the welding, cell phone metal shield welding process can be used to program automatic laser spot welding machine for spot welding, butt welding, overlap welding and sealing welding.
4. The welding heat affected area is small, the deformation is small, the speed is fast, the welding seam is smooth, beautiful, does not need to deal with, may precisely control, easy to realize the automation production.
Cell Phone Shield Fiber Laser Spot Welding Machine Application:
1. Cell phone shield fiber laser spot welding machine is suitable for mechanical parts, auto parts, cable, USB plug, lithium batteries, cell phone cable shields seal welding of electronic components, silicon steel plate welding, precision welding and seal welding.
2. It was widely used in aviation, machinery, electronics, communications, power, chemical industry, automobile manufacturing, etc.
3. Suitable for welding materials are stainless steel, gold, silver, copper, alloy, steel, aluminum, nickel equivalent material welding or different materials welding.
4. Widely used in mobile phone batteries, sensors, process gifts, clocks and watches, electronic components, sensors, precision machinery, communication, computer peripheral accessories, mobile phone accessories.
Cell Phone Shield Fiber Laser Spot Welding Machine Specification:
| Laser Type | ND: YAG | Laser Power | 200 watt |
| Power Supply | AC220V/50HZ/30A | Max. Output Power | 200W |
| Max. Pulse Energy | 100J/10MS | Beam Length | 1064NM |
| Pulse Width | 0.2-20MS | Focal Spot Diameter | 0.2-3mm |
| Positional Accuracy | 0.02mm | Pulse Frequency | 1-100HZ |
| Welding Area | 300*300mm | Welding Depth | ≤1mm |
| Cooling Type | Water Cooling | Source | Red Light |
| Certification | CE, ISO | Wanranty | 12 Months |
| Dimension | 1400*650*1300mm | After-sales Service | Online Support |
Cell Phone Shield Fiber Laser Spot Welding Machine Features:
1. Laser welding can realize spot welding, butt welding, overlap welding and sealing welding of thin wall materials and precision parts.
2. High laser power, high depth to width ratio of welding seam, small heat affected area, small deformation and fast welding speed.
3. The welding seam is of high quality, smooth and beautiful, without porosity, and the toughness of the material after welding is at least equal to that of the parent material.
4. Intelligent design, LCD display, centralized keystroke operation is more simple.
5. Four-dimensional ball screw table, using imported servo control system, optional rotary table, can achieve spot welding, linear welding, circular welding and other automatic welding, wide range of application, high precision, fast speed.
6. The current waveform can be adjusted arbitrarily, and different waveforms can be set according to different welding materials, so that the welding parameters and welding requirements can be matched, so as to achieve a beautiful welding effect.
Reasons for choosing our Cell Phone Shield Fiber Laser Spot Welding Machine
