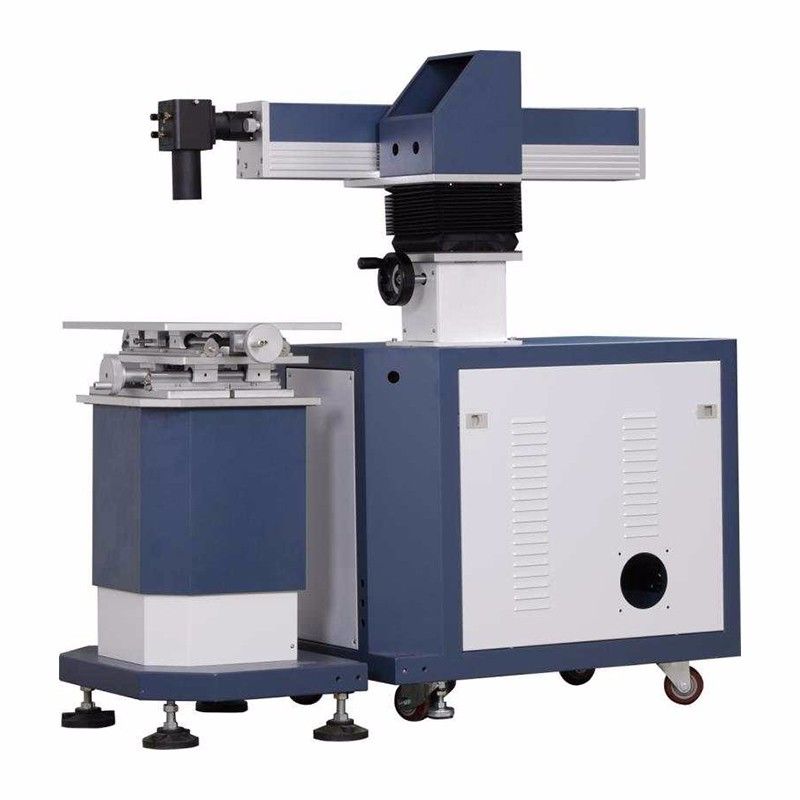

400 Watt Automatic Fiber Laser Welding Machine Metal Stainless Jewelry

China 400 Watt Automatic Fiber Laser Welding Machine Metal Stainless Jewelry supplier
400 Watt Automatic Fiber Laser Welding Machine Metal Stainless Jewelry supplier 400 Watt Automatic Fiber Laser Welding Machine Metal Stainless Jewelry supplier

Large Image :  400 Watt Automatic Fiber Laser Welding Machine Metal Stainless Jewelry

Product Details:

Place of Origin: CHINA
Brand Name: CHONGQING CHUKE
Certification: CE
Model Number: AMWM

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: US$ 11500> 1 SET
Packaging Details: Wooden Case
Delivery Time: 5 ~ 14 working day
Payment Terms: L/C, T/T, Western Union, MoneyGram, Trade Assurance
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Name: Automatic Fiber Laser Welding Machine Power: 400W
CNC: Yes Color: White
Customized: Yes Cooler: Water Cooling



400W Automatic Fiber Laser Transmission Welding Machine Metal Stainless Jewelry

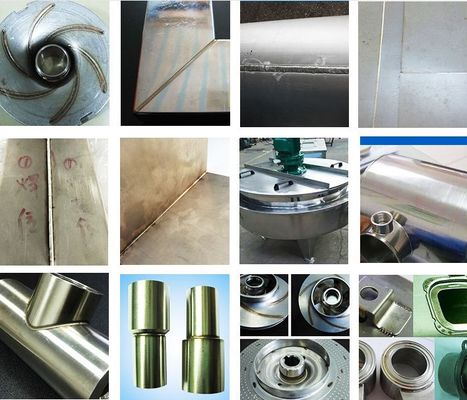

Automatic Fiber Laser Welding Machine Application



Used in optoelectronic communication devices, medical, electronics, batteries, polar ear, fiber coupling devices, picture tube electron guns, metal parts, mobile phone vibration motors, watch precision parts, automotive steel sheets, optical communication industry, copper parts, aluminum parts and other precision welding.


Automatic Fiber Laser Welding Machine Advantage



1. The welding spot has a uniform energy distribution and has the best spot required for welding.

2. Applicable to all kinds of complex welds, welding of various devices, and welds of thin plates within 5mm.

3. Using imported ceramic concentrating cavity in the UK, it is resistant to corrosion, high temperature and long life.

4. Flexible and convenient welding, up to 5 meters of fiber, optional 8 meters of fiber.

5. Optional CCD camera monitoring system for easy observation and precise positioning.

6. Customized tooling fixtures can be customized to achieve mass production of products.



Automatic Fiber Laser Welding Machine Specification



Max Laser Power 400w
Max Single Pulse Energy 120J
Laser Wavelength 1064nm
Laser Welding Frequency ≤100Hz
Laser Welding Depth 0.1~5.5mm
Pulse Width 0.5~20ms
Focal Spot Diameter 0.2-2mm
Output Light Path 1~4 optional
Worktable Range 300*200 optional
Positional System Red light or CCD
Power Supply 380V/50Hz/60A
Cooling Type Water Chiller
Worktable Travel 200x200x200





Automatic Fiber Laser Welding Machine Features



1. Laser welding can achieve spot welding, butt welding, overlay welding, sealing welding, etc. for thin-walled materials and precision parts.



2. The laser power is large, the weld has a high aspect ratio, the heat affected area is small, the deformation is small, and the welding speed is fast.



3. The weld quality is high and flat, no porosity, and the toughness of the material after welding is at least equivalent to the parent material.



4. Humanized design, LCD display, centralized button operation is simpler.



5. Four-dimensional ball screw workbench adopts imported servo control system and optional rotary table. It can realize automatic welding such as spot welding, straight line welding and circumferential welding. It has wide application range, high precision and fast speed.



6. The current waveform can be adjusted arbitrarily, and different waveforms can be set according to different welding materials, so that the welding parameters and welding requirements are matched to achieve the best welding effect.

400 Watt Automatic Fiber Laser Welding Machine Metal Stainless Jewelry
