High Power Welding Automotive Laser Soldering Machine For Jewellery / Gold

China High Power Welding Automotive Laser Soldering Machine For Jewellery / Gold supplier
High Power Welding Automotive Laser Soldering Machine For Jewellery / Gold supplier High Power Welding Automotive Laser Soldering Machine For Jewellery / Gold supplier High Power Welding Automotive Laser Soldering Machine For Jewellery / Gold supplier

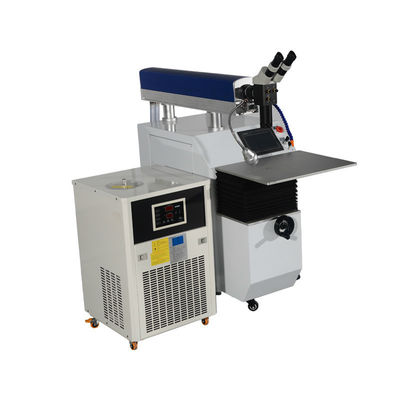

Large Image :  High Power Welding Automotive Laser Soldering Machine For Jewellery / Gold

Product Details:

Place of Origin: CHINA
Brand Name: CHONGQING CHUKE
Certification: CE
Model Number: AMWM

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: US$ 9850> 1 SET
Packaging Details: Wooden Case
Delivery Time: 5 ~ 14 working day
Payment Terms: L/C, T/T, Western Union, MoneyGram, Trade Assurance
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Name: Metal Fiber Laser Welding Machine Power: 400W
CNC: Yes Color: White
Customized: Yes Cooler: Water Cooling



High Power Metal Welding Automotive Fiber Laser Soldering Machine Gold Jewelry



Metal Automotive Fiber Laser Soldering Machine Description



Laser welding machine, also known as laser welding machine and laser welding machine, is a machine for processing laser materials.



Laser welding uses high-energy laser pulses to locally heat the material in a small area. The energy of laser radiation passes through heat conduction.



The internal diffusion of the material melts the material to form a specific molten pool for soldering purposes.



Metal Automotive Fiber Laser Soldering Machine Application



1. Bathroom industry: water pipe joints, reducer joints, tees, valves, stainless steel shower.

2. Spectacle industry: glasses, stainless steel, titanium alloy and other materials, precise welding of the outer frame.

3. Battery industry: lithium battery, battery pack, electric vehicle battery box, gas battery sealed case, sensor, diode, electrode laser welding.

4. Electronic industry: MP3/MP4 shell, keyboard, motherboard screw soldering, USB data cable, notebook and other structural parts can be laser welded.

5. Hardware industry: impeller, kettle, water cup, hip flask, stainless steel bowl, aluminum alloy, door handle, mixer, shelf, complex stamping parts etc.

6. Welding of copper parts, aluminum parts, casting parts.





Metal Automotive Laser Welding Machine Specification



Max Laser Power 400w
Max Single Pulse Energy 120J
Laser Wavelength 1064nm
Laser Welding Frequency ≤100Hz
Laser Welding Depth 0.1~5.5mm
Pulse Width 0.5~20ms
Focal Spot Diameter 0.2-2mm
Output Light Path 1~4 optional
Worktable Range 300*200 optional
Positional System Red light or CCD
Power Supply 380V/60Hz
Cooling Type Water Chiller
Worktable Travel 200x200x200





Metal Automotive Fiber Laser Welding Machine Features



1. Stable and durable, low consumption and high efficency.



2. High quality laser output with excellent beam quality.



3. High-quality welding head, small heat-affected area, good weld appearance and high welding efficiency.



4. Brand control card, arc track editing, with track display, full-featured, convenient and fast programming, stable and reliable, flexible and convenient.



5. Tailored for users in different industries, the structure is reasonable, the appearance is elegant and practical.



6. A fast cooling fan ensures normal temperature of the chassis, increases work efficiency and extends life.



7. High-energy storage batteries are used to store a large amount of electricity, increasing usage time and working efficiency.



8. Widely used in electronic components, jewelry, craft gifts, watches, auto parts, hardware, mold repair, medical equipment and other industries.



9. Widely used in electronic components, jewelry, craft gifts, watches, auto parts, hardware, mold repair, medical equipment and other industries.
