500w Fiber Laser Welding Machine Singapore Flux for Stainless Steel Vacuum Cup

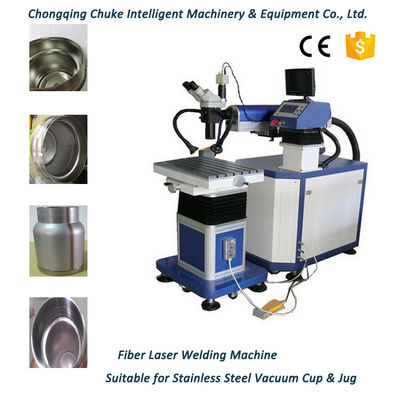

Stainless Steel Cup and Jug Fiber Laser Welding Machine Description
The laser welding machine adopts imported ceramic reflective cavity and is excited by 12KW double pulse xenon lamp.
Current waveform controllable switching power supply, powerful, pulse programmable and intelligent system management.
Industrial computer precision control (two axes). The precision X/Y axis two-dimensional automatic moving platform and the high-rigidity lifting body can be manually moved up and down to focus.
Optional rotary table (φ80mm or φ60mm) The monitoring system uses a CCD monitor. Optional external water cooling chiller.
Stainless Steel Cup and Jug Fiber Laser Welding Machine Feature
1. The welding speed is fast, and it is especially suitable for laser precision spot welding of various small thin-walled parts.
2. Production efficiency is higher than ordinary laser spot welding.
3. Both the galvanometer and the laser are directly controlled by software, providing dedicated laser welding software based on the Windows XP platform.
4. Solder joints or graphics can be directly entered and edited in their dedicated software, edited by other software such as AutoCAD, CorelDRAW, or imported into DWG or PLT files.
5. The machine is stable in quality, easy to operate and easy to maintain.
Stainless Steel Cup and Jug Fiber Laser Welding Machine Application

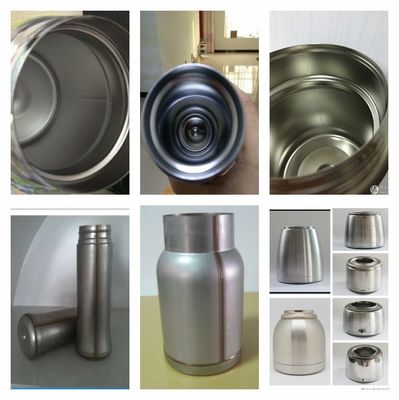

Used in offline/online welding of mass production companies in the electronics, communications, hardware and other industries, including battery types, mobile phone shields, metal phone cases, metal capacitor housings, stainless steel kitchen ware like vacuum cup and jug, computer hard drives, micro motors, sensors, metal screens, shaving High-efficiency laser spot welding or seal welding of blades and other types of electronics.
Stainless Steel Cup and Jug Fiber Laser Welding Machine Specification
| Fiber Laser Wavelength | 1064nm |
| Pump Source | Superior Xenon Lamp, YAG, Imported Ceramic Spotlight Cavity |
| Max Power | 500w optional |
| Max Pulse Energy | 120J |
| Pulse Width | 0.1~50.0ms |
| Continuous Frequency | 1~200Hz |
| Welding Depth | 0.1~2.5mm |
| Welding Spot Size | 0.2~2.0mm |
| Welding Speed | 0~25mm/s |
| Observation System | CCD Monitor |
| Positional System | Red Light |
| Cooling System | Water Cooling |
| Chiller Power | 3P Chiller |
| Power Consumption | <12KW |
| Power Supply | 380V±10%/ 50Hz / 40A three-phase |
Stainless Steel Cup and Jug Fiber Laser Welding Machine Condition
1) The machine is required to be placed at room temperature for use.
2) Power supply grid requirements: three-phase 380V/ 50Hz.
3) Power grid fluctuation: ± 5%, the grid ground wire meets international requirements. For areas with a voltage amplitude of 5% or more, electronic automatic voltage regulation and current stabilization devices should be installed.
4) There should be no strong electromagnetic interference near the installation equipment. Avoid radio transmitting stations (or relay stations) around the installation site.
5) Ground amplitude: less than 50um; vibration acceleration: less than 0.05g. Avoid a lot of machine tools such as stamping in the vicinity.
6) Equipment space requirements should be smoke-free and dust-free, avoiding dusty working environments such as metal polishing and grinding.
7) Anti-static floor should be installed in some environments to enhance shielding.
8) The water quality of working cooling circulating water is strictly required. Deionized water or distilled water is required. Water quality such as tap water or mineral water containing high metal ions or other minerals may not be used.
