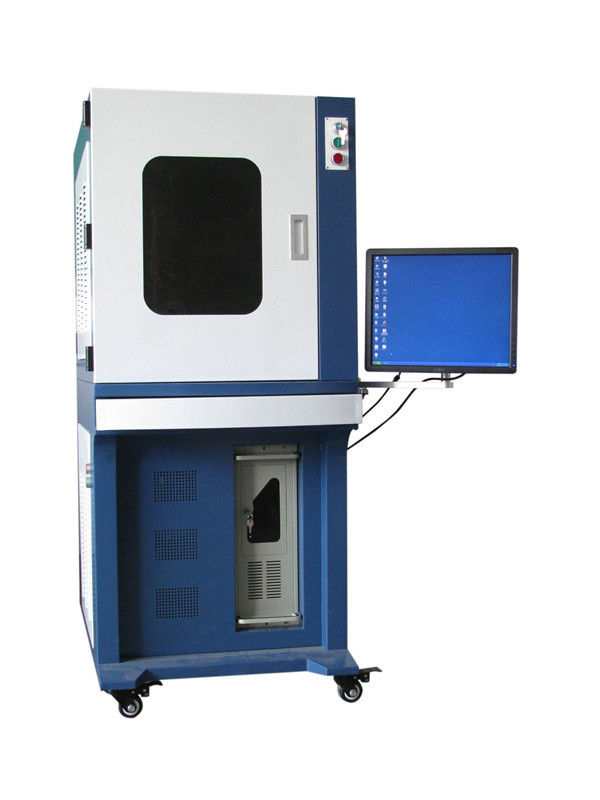

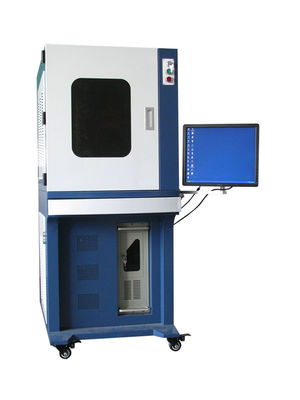

Decorate / Ornament Automatic Uv Laser Engraving Equipment with Desktop

China Decorate / Ornament Automatic Uv Laser Engraving Equipment with Desktop supplier

Large Image :  Decorate / Ornament Automatic Uv Laser Engraving Equipment with Desktop

Product Details:

Place of Origin: China(mainland)
Brand Name: ZIXU
Certification: CE,FDA,ISO
Model Number: ULMM-A01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 10000-15000 per set
Packaging Details: Packing in wooden case,95*81*122cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram,Paypal
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Machine Type: Desktop Feature: Easy Operation
Machine Structure: Desktop Type Print Material: Leather
Applicable Material: Industrial Laser Power: 3w
High Light:

uv laser marker

,

uv laser marking systems

Decorate/Ornament Easy Operation Automatic Uv Print Leather Machine Desktop







Product introduction



UV laser marking equipment, with the characteristics of laser equipment, online marking can be achieved in the function of the line, mainly for thin and fragile items such as shallow marks: solar glass and so on. Marking effect is through the short wavelength laser directly interrupt the molecular chain (unlike long-wave laser generated by the evaporation of surface material to reveal the deep material) to show the desired pattern of etching, text.



Parameter
Parameter index
Unit
Illustration
Laser wavelength
354.7
nm
/
Average output power
3.0-5.0
W
@30kHz
pulse width
<20
ns
@30kHz
Pulse repetition frequency
10-100
KHz
/
Laser output mode
TEM00
/
/
Beam quality
<1.2
/
/
Spot diameter
0.8+-0.1
mm
Measured at window
Beam divergence angle
<1.2
mrad
/
Beam circularity
>90
/
/
Pulse stability
<3
%
RMS/@30kHz
Power stability
<5
%
RMS/8hr
Beam pointing stability
<30
urad/℃
/
Polarization degree
>100:1
/
/
Polarization direction
Horizontal
/
/
Working temperature and humidity
10to35 <80
℃ %
/
Storage temperature and humidity
-20 to 65 <90
℃ %
/
Power
100-240 50/60<500
VAC Hz W
Single phase
Warranty
15
months
/



Samples
Decorate / Ornament Automatic Uv Laser Engraving Equipment with Desktop


Application

Because UV laser marking machine compared to other marking machines, the laser beam is mainly low-power, so it is particularly suitable for ultra-fine product processing, such as glass, cell phone screen, sophisticated equipment, and most of the metal and nonmetal Materials processing is also suitable, such as hardware, ceramics, nameplate panels, plastic and other materials.



Usage method

1, check the marking machine's power cord, so that it is connected correctly and reliably;

2, connected to the total power supply. Power indicator light

3, confirm the laser head mushroom button (red emergency stop switch) is in the pressed state;

4, open the computer monitor, the host computer power switch;

5, Rotate the red mushroom button in the direction of arrow to make it bounce, then turn on the power of the laser head. After about 1 minute, the laser head starts to finish;





Product features

By using what is sometimes referred to as "cold ablation", the UV laser marking laser beam produces a reduced heat-affected zone that minimizes the effects of edging, carbonization, and other thermal stresses while using more These high-power lasers usually have these negative effects.





FAQ



1. UV laser marking machine applications? UV laser marking machine with its unique low-power laser beam, especially for the ultra-fine processing of the high-end market, cosmetics, pharmaceuticals, video and other polymer materials on the surface of the bottle marking, fine, marked cleaning firm, Better than the ink Penma and no pollution; flexible pcb board marking, scribing; silicon wafer microporous, blind hole processing; LCD liquid crystal glass two-dimensional code marking, glassware surface drilling, metal surface coating marking, Plastic keys, electronic components, gifts, communications equipment, building materials and more.





Design feature

Because this laser marking machine laser is UV laser, with certain radiation characteristics, the appearance of the design using double sliding door closed processing, using high-quality special filter protection plexiglass special observation window to create the ultimate machine protection performance .





Product features



The "tool" used in laser processing is the focused spot, without additional equipment and materials, as long as the laser can work normally, you can continue processing for a long time. Laser processing speed, low cost. Laser processing by computer automatic control, production without human intervention, to achieve in the production line of parts for high-speed, high-efficiency automated processing. My company's laser processing equipment can meet the 24-hour continuous work requirements..





Chuke Factory



Chongqing Chuke Intelligent Machinery &Equipment Co.,Ltd ,Founded in 2006, the company occupies an area of 2,000 square meters, with annual production of 500 laser marking machines, pneumatic and electric marking Machine more than 1,000, marking needle (pneumatic marking needle up to more than 100 species) annual output of more than 100,000 sets.

Since the establishment of the company, products have been loved all over the world. Such as Britain, Spain, France, Germany, the United States, Dubai and Brazil, South Korea more than 30 countries and regions. After we constantly improve and perfect the quality of our products, we have obtained CE, ISO9001, FDA, TUV certificates and won the favor and approval of a large number of customers at home and abroad.More than 10 years of development history, the company always adhere to the "integrity, quality, innovation and service" concept. Absorption of new ideas, strict quality control, a full range of service tracking, adhere to make high-quality products. Now has a group of capable managers and a high-quality professional and technical team. Our quality of life, time for the credibility of the business as the competitiveness of the faith, based on domestic and foreign markets. "




After sale service

1 year guarantee,providing free technical support.
2.During the warranty period, the required parts after the non-human damage free replacement,the freight is borne by us.
3.Machine has been adjusted before delivery, operation instructions is included in the delivery. If there is any other questions, pls kindly tell us.





Packing and shipping



Packing in wooden case,95*81*122cm The machine gross is 1-188KG, you can use express delivery. If more than 75KG, you can choose sea transportation.



Delviery time 7-15 working days
Type of shipping Express,air or sea
Terms of payment T/T,credit card,,paypal
package size 95x81x122cm
Gross weight 188KG
