| Feature: | Good Mark Quality | Name: | Laser Glass Marking Machine |
|---|---|---|---|
| Service: | Technical Service | Marking Content: | Number And Letter |
| Applicable Material: | Eyeglass Frame | Laser Power: | 3w |
| High Light: | uv laser marker,uv laser engraving machine |
||

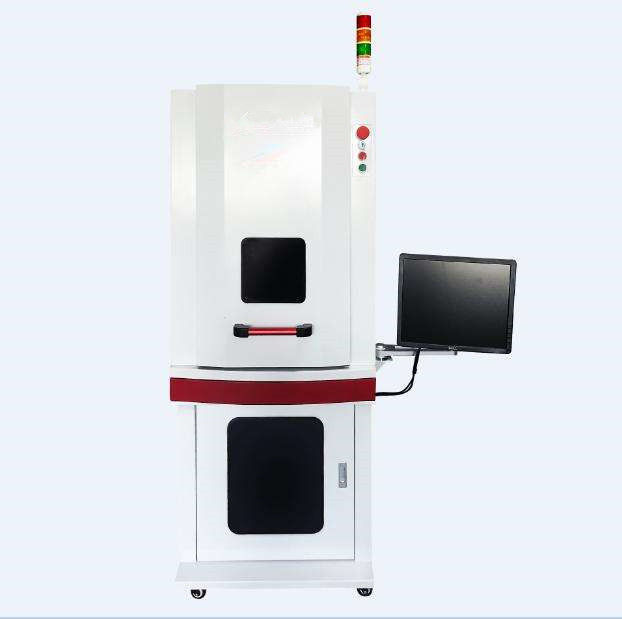

Spot Commodity Eyeglass Frame Uv Laser Glass Marking Machine
Product introduction
The ultraviolet laser marking machine is a series of laser marking machines. Therefore, the principles are similar to those of laser marking machines. They are permanently marked by laser beams on various material surfaces. The effect of marking is directly interrupting the molecular chain of matter (short wavelength laser), which is different from the evaporation of deep surface material produced by long wave laser, revealing the etched pattern and text.
|
Parameter
|
Parameter index
|
Unit
|
Illustration
|
|
Laser wavelength
|
354.7
|
nm
|
/
|
|
Average output power
|
3.0-5.0
|
W
|
@30kHz
|
|
pulse width
|
<20
|
ns
|
@30kHz
|
|
Pulse repetition frequency
|
10-100
|
KHz
|
/
|
|
Laser output mode
|
TEM00
|
/
|
/
|
|
Beam quality
|
<1.2
|
/
|
/
|
|
Spot diameter
|
0.8+-0.1
|
mm
|
Measured at window
|
|
Beam divergence angle
|
<1.2
|
mrad
|
/
|
|
Beam circularity
|
>90
|
/
|
/
|
|
Pulse stability
|
<3
|
%
|
RMS/@30kHz
|
|
Power stability
|
<5
|
%
|
RMS/8hr
|
|
Beam pointing stability
|
<30
|
urad/℃
|
/
|
|
Polarization degree
|
>100:1
|
/
|
/
|
|
Polarization direction
|
Horizontal
|
/
|
/
|
|
Working temperature and humidity
|
10to35 <80
|
℃ %
|
/
|
|
Storage temperature and humidity
|
-20 to 65 <90
|
℃ %
|
/
|
|
Power
|
100-240 50/60<500
|
VAC Hz W
|
Single phase
|
|
Warranty
|
15
|
months
|
/
|
Application
It is suitable for the surface laser processing of most metal and nonmetallic materials or the laser processing of the coating film. It is especially suitable for glass and plastic marking. It is mainly used in the fields of computer, mobile phone, consumer electronics, electronic components, auto parts, daily hardware, medical equipment and so on.
First, open the total power supply, open the tank, open the laser, open the software, set up the mark, proofread the red light, and then direct the mark directly.
The laser has adopted the exclusive end pumped structure of the TE refrigeration semiconductor laser pumped and the new first pulse suppression method to ensure the high stability of the system. Long life New design and selection of components to ensure the long life of the system. Safety The complete closed design of the processing area ensures the improvement of the safety and protection of the processing process. high reliability High speed caching control technology, selected components, long time continuous production, to ensure productivity, high reliability
The new UV-Laser/Green-Laser uses simplified optical design to improve product reliability. Consumables.Advanced technology guarantee, no need to replace frequency doubling crystal, effectively reduce operation cost.
FAQ
How many watts are there in the UV laser marking machine? UV laser marking machine can be divided into 3W, 5W, 8W.
Design feature
The laser has adopted the exclusive end pumped structure of the TE refrigeration semiconductor laser pumped and the new first pulse suppression method to ensure the high stability of the system. Long life.New design and selection of components to ensure the long life of the system. Safety The complete closed design of the processing area ensures the improvement of the safety and protection of the processing process. high reliability High speed caching control technology, selected components, long time continuous production, to ensure productivity, high reliability
The new UV-Laser/Green-Laser uses simplified optical design to improve product reliability. Consumables Advanced technology guarantee, no need to replace frequency doubling crystal, effectively reduce operation cost.
Product features
The focus of light spot is small and the beam quality is good, and the safety of ultra fine marking can be achieved.Fully enclosed design of processing area ensures the safety and low cost of processing.No need to replace frequency doubling crystals to reduce operation and maintenance costs
Chuke Factory
Chongqing Chuke Intelligent Machinery &Equipment Co.,Ltd.Founded in 2006, the company occupies an area of 2,000 square meters, with annual production of 500 laser marking machines, pneumatic and electric marking Machine more than 1,000, marking needle (pneumatic marking needle up to more than 100 species) annual output of more than 100,000 sets.Since the establishment of the company, products have been loved all over the world. Such as Britain, Spain, France, Germany, the United States, Dubai and Brazil, South Korea more than 30 countries and regions. After we constantly improve and perfect the quality of our products, we have obtained CE, ISO9001, FDA, TUV certificates and won the favor and approval of a large number of customers at home and abroad.More than 10 years of development history, the company always adhere to the "integrity, quality, innovation and service" concept. Absorption of new ideas, strict quality control, a full range of service tracking, adhere to make high-quality products. Now has a group of capable managers and a high-quality professional and technical team. Our quality of life, time for the credibility of the business as the competitiveness of the faith, based on domestic and foreign markets. "
After sale service
1.1 year guarantee,providing free technical support.
2.During the warranty period, the required parts after the non-human damage free replacement,the freight is borne by us.
3.Machine has been adjusted before delivery, operation instructions is included in the delivery. If there is any other questions, pls kindly tell us.
Packing and shipping
Packing in wooden case,95*81*122cm The machine gross is 1-188KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 95x81x122cm |
| Gross weight | 188KG |
