Product Details:
Payment & Shipping Terms:
|
| Machine Type: | Table Top | Feature: | High Effiency |
|---|---|---|---|
| Machine Structure: | Desktop Type | Compatible Software: | CORELDRAW,PHOTOSHOP,CAD |
| Service: | Customized | Application: | Nonmetal Marking |
| High Light: | uv laser engraving machine,uv laser marking systems |
||

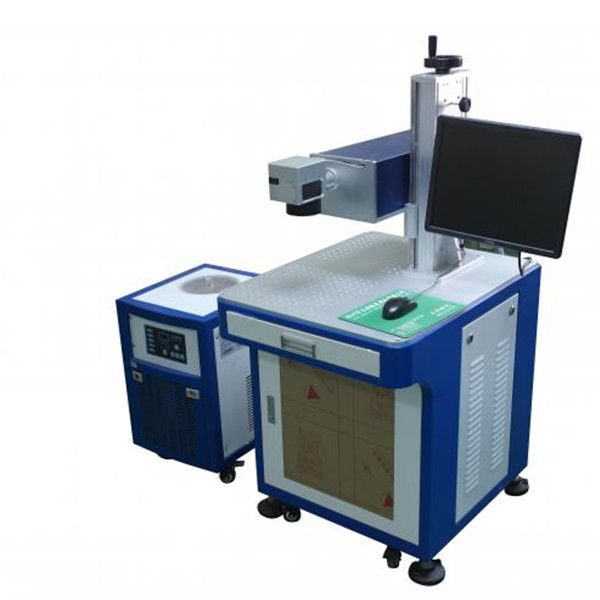

High Effiency Prompt Goodstabletop Table Top Uv Laser Marking Machine
Product introduction
A laser marking machine is a permanent mark on the surface of a variety of materials with a laser beam. The effect of marking is to expose the deep material through the evaporation of the surface material, thereby engraving fine patterns, trademarks and words.
|
Parameter
|
Parameter index
|
Unit
|
Illustration
|
|
Laser wavelength
|
354.7
|
nm
|
/
|
|
Average output power
|
3.0-5.0
|
W
|
@30kHz
|
|
pulse width
|
<20
|
ns
|
@30kHz
|
|
Pulse repetition frequency
|
10-100
|
KHz
|
/
|
|
Laser output mode
|
TEM00
|
/
|
/
|
|
Beam quality
|
<1.2
|
/
|
/
|
|
Spot diameter
|
0.8+-0.1
|
mm
|
Measured at window
|
|
Beam divergence angle
|
<1.2
|
mrad
|
/
|
|
Beam circularity
|
>90
|
/
|
/
|
|
Pulse stability
|
<3
|
%
|
RMS/@30kHz
|
|
Power stability
|
<5
|
%
|
RMS/8hr
|
|
Beam pointing stability
|
<30
|
urad/℃
|
/
|
|
Polarization degree
|
>100:1
|
/
|
/
|
|
Polarization direction
|
Horizontal
|
/
|
/
|
|
Working temperature and humidity
|
10to35 <80
|
℃ %
|
/
|
|
Storage temperature and humidity
|
-20 to 65 <90
|
℃ %
|
/
|
|
Power
|
100-240 50/60<500
|
VAC Hz W
|
Single phase
|
|
Warranty
|
15
|
months
|
/
|
Application
Made of silicon chip is known as "the hard nosed, with astonishing operation ability. No matter how complex mathematical problems, physics and engineering problems, no matter how much the computation workload, staff only through the computer keyboard to tell it, and give the problem-solving ideas and instructions, the computer can in a very short time to tell you the answer. The optical fiber laser marking machine can not play such a good effect, only the UV laser marking machine can play such a effect.
As a person who has just known or exposed to laser equipment, laser equipment is difficult to start with, and these are only your initial impressions. Laser marking machines, all automatic machines, do not need too complex operations to carry out, laser equipment only need systematic operation and simple mouse click.
FAQ
print is blurred, and the marking speed is too fast? The laser spot changes, re adjustment, so that the spot is the brightest and the most circle. The 2. marking line is coarse and the marking is weak. The possible problem is: the workpiece surface is no longer focused on the plane, adjust the workpiece surface to focus, and pay attention to changing the marking material after operation, and remember to adjust the focal plane.
Design feature
The first engraved optical fiber laser marking machine functions on the surface of the material with very fine light beam, and the finer line width can reach 0.05mm. It creates a wide application space for precision processing and anti-counterfeiting. Mini laser marking, ultra small volume, ultra light weight, easy to carry, is your choice
Product features
Long life, high efficiency, no maintenance, easy to install and carry. The operation of the whole machine is simple and the switch machine is controlled by one button. Very suitable for single processing operations,
It is convenient and convenient to use with other automation equipment. It has high quality laser beam with fine spot and no consumables. The software is simple, do not need supplies.
Chuke Factory
Chuke Intelligent Machinery & Equipment Co., Ltd specializes in the development and production of pneumatic marking machine, pneumatic marking machine parts, pneumatic marking needle. R & D and production of marking needle sales 11 years, is the earliest production marking needle manufacturers. Marking needle production from the ordinary lathe equipment to fully automatic CNC equipment, marking needle technology is the beginning of several processes, and now has a fully automated equipment, a process is completed, fully guaranteed product quality, accuracy, concentricity and yield issues. So purple Asahi marking needle has been fully able to meet the various types of marking machine needs. Has been throughout the country and the world. Market share of 70%. Purple Asahi is the real marking needle experts.
After sale service
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
Packing and shipping
Wooden box or according your requests
Delivery Time
3-5 days
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 95x81x122cm |
| Gross weight | 188KG |
